Vacuum board lifter/crane up to 65 kg – SUPERCUT VAL

SUPERCUT VAL

Lift plasterboard wherever you want

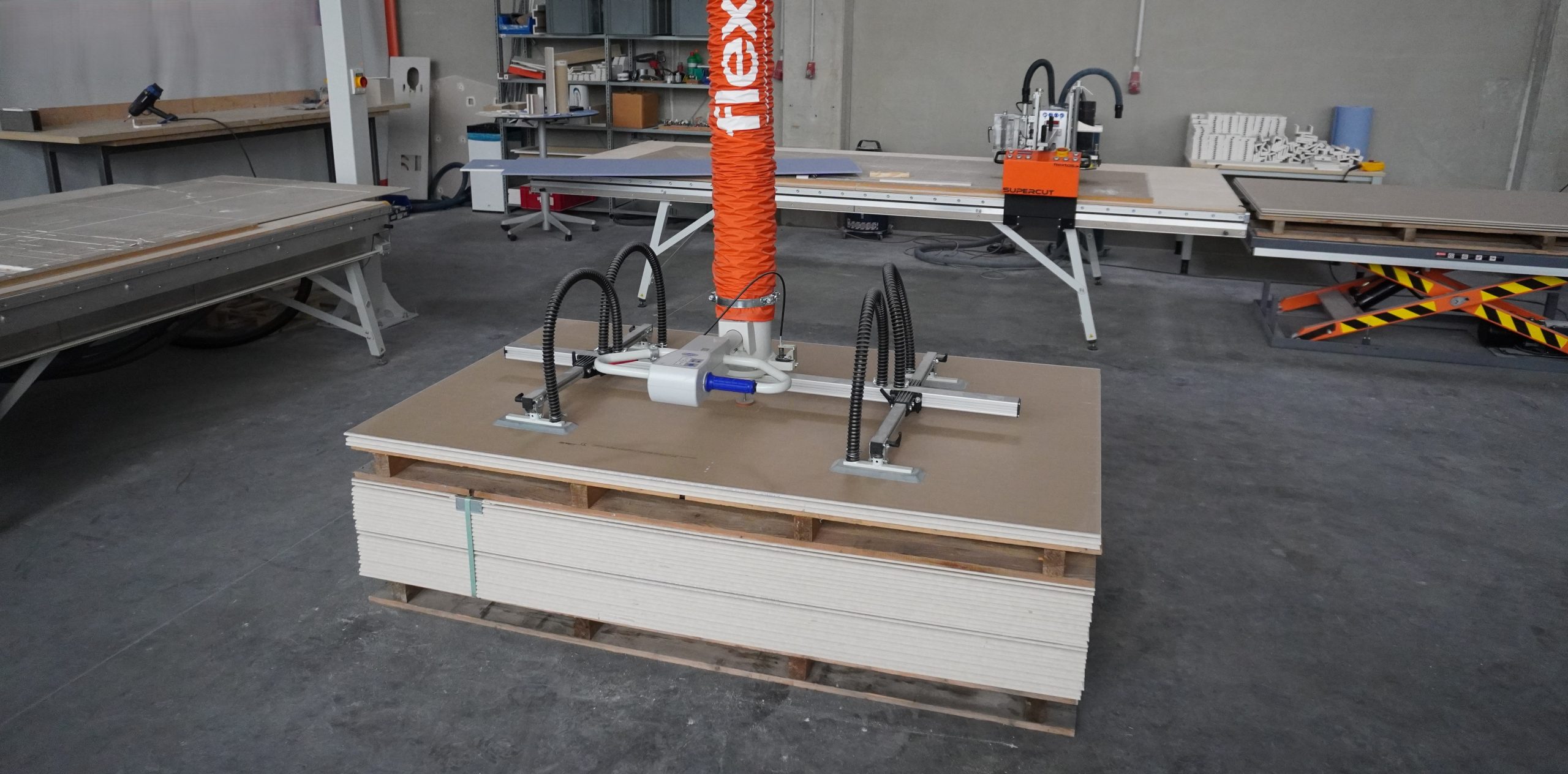

The SUPERCUT VAL is a jib crane with 4-way vacuum suction pad. You lift plasterboards wherever you need it without any effort.

The suction pads of the VAL vacuum board lifter can carry up to 65 kg. This allows you to lift plasterboards safely and set it down again without damaging it. It even works one-handed thanks to intuitive operation handle.

Within a radius of max. 7.5 metres, you can reach any place on your milling and sawing tables – ergonomically and comfortably. It doesn’t get any easier than this!

Inquiry SUPERCUT VAL »

Book live demo GBL here »

Your advantages with the VAL vacuum board lifter

flextos Lifting systems for gypsum boards VAL ergonomic lifting

Lift boards up to 65 kg load capacity – without any effort

flextos Lifting systems for gypsum boards VAL handle

simple, intuitive one-hand operation

flextos Lifting systems for gypsum boards VAL

Technical data VAL

Load capacity: standard 65 kg^*
4-way suction pad
Operating arm length: 750 mm
Mains voltage: 400V
Suction capacity (50 Hz): 260m³/h
Rated power: 4 kW
Sound pressure level: 74 dB
Electrical design according to VDE, UL and CSA
made for SUPERCUT XPS, XPK and CNC milling + sawing tables

* Higher payloads (85 kg or 110 kg) and further boom lengths optionally available on request.

Download brochure

Technical data Jib Crane

Height of lower edge of outrigger: 3,000 mm
Boom length: 4,000 mm^*
Slewing range: 270
Overall height: 3,525 mm
Total weight: approx. 150 kg
max. torque of force: 5.9 kNm
max. vertical force: 2.7 kN
especially for SUPERCUT XPS, XPK and CNC milling + sawing tables

* Further boom lengths optionally available on request.
